Advanced Gliders
Aeros Stealth III

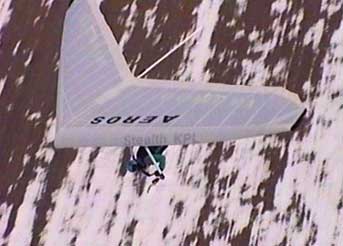

Aeros Stealth 3 Stealt III top
Stealth 3 130 Stealth 3 142 Stealth 3 151
Sail Area . 129 sq. ft. 142 sq. ft. 151 sq. ft.
Wing Span 31 ft. 32.7 ft. 34.5 ft.
Nose Angle 130-132 128-130 128-130
Aspect Ratio 7.8:1 7.4:1 7.8:1
Pilot Weight . 99-150 lbs. 121-187 lbs. 154-253 lbs
Glider Weight 59.4 lbs. 75 / 71 lbs.* 81 / 76 lbs.*
Minimum Sink 175 fpm 172 fpm 172 fpm
Ribs 28 32 32
Double Surface 88% 90% 90%

*weight based on carbon crossbar upgrade

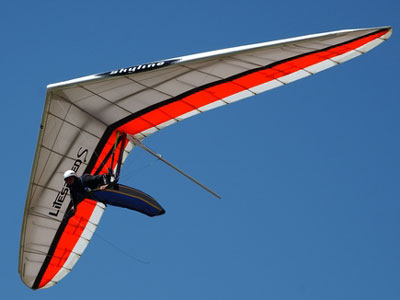

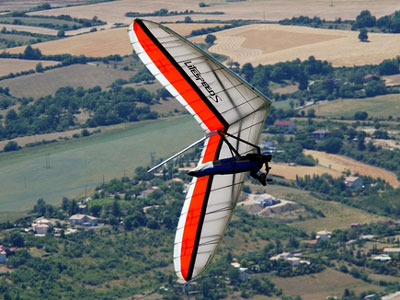

Moyes Litespeed S
Litespeed Moyes Litespeed S
Litespeed S 3.5 Litespeed S 4 Litespeed S 4.5 Litespeed S 5
Area 144 sq.ft 147 sq.ft. 152 sq.ft. 157 sq.ft.
Span 32.8 ft 32.8 ft 34 ft 34 ft
Nose Angle 130-132 degrees 130-132 degrees 130-132 degrees 130-132 degrees 130-132 degrees
Aspect Ratio 7.5 7.3 7.6 7.4
Glider Weight * 74 lbs 74 lbs 76 lbs 76 lbs
Optimal Pilot Weight 154 lbs 165 lbs 187 lbs 198 lbs
Hook-In-Weight 150-240 lbs 150-240 lbs 165-265 lbs 165-265 lbs
Top Ribs 23 23 23 23
Bottom Ribs 6 6 6 6
VNE 53 mph 53 mph 53 mph 53 mph
VA 46 mph 46 mph 46 mph 46 mph
Trim Speed 21 mph 21 mph 21 mph 21 mph
Stall Speed ** 16 mph 16 mph 16 mph 16 mph
Maximum Speed 77 mph 77 mph 77 mph 77 mph
Best Glide Speed 28 mph 28 mph 28 mph 28 mph
Best Glide Angle 15:1 15:1 15:1 15:1
Glide Angle 10:1 46 mph 46 mph 45 mph 45 mph

* Glider Weight is measured from the standard glider. Some options will decrease glider weight by up to 2kgs.

** Measured at Optimal Pilot Weight

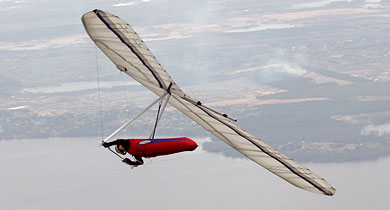

Wills Wing T2
T2 144 T2 154
Area ft2 144 154
Span (ft) 32.3 33.5
Aspect Ratio 7.4 7.5
Glider Weight (lbs) 71 73
Hook-In Weight (lbs) 140-220 160-260
Optimum Body Weight (lbs) 140-180 180-200
Nose Angle (deg) 127-132 127-132
Double Surface (%) 92 92
USHGA Rating 4 4
Vne (mph) 53 53
Va (mph) 46 46
Vms (mph) 21 21
Vd (mph) 70 70
