Flytec Varios
Flytec 4005 Compact
Flytec 4005
  • Two Altimeters
  • Digital & Analogue Variometer
  • Real Time Clock, Flight Timer and Stopwatch
  • Optional Speed Display and Stall Alarm
  • Temperature Display
  • 20 Flight Memory with Date Stamp
  • Bracket not included

Includes

  • Manual
  • Attachment clip & elastic Velcro
  • Protective carry bag
  • 2 AA batteries
  • 2 year warranty
Flytec 4005 - $465.00
Flytec 4010 Real Time
Flytec 4010
  • Two Altimeters
  • Digital & Analogue Variometer
  • Real Time Clock, Flight Timer and Stopwatch
  • Optional Speed Display and Stall Alarm
  • Temperature Display
  • 20 Flight Memory with Date Stamp
  • Bracket not included

Includes

  • Manual
  • At tachment clip & elastic Velcro
  • Protective carry bag
  • 2 AA batteries
  • 2 year warranty
Flytec 4010 - $465.00
Flytec 4020 XL
  • 126 hour FAI approved barograph
  • Customizable audio
  • Polar recording capability
  • No back-up battery required
  • Two Altimeters
  • Digital & Analogue Variometer
  • Real Time Clock, Flight Timer and Stopwatch
  • Optional Speed Display and Stall Alarm
  • Temperature Display
  • 20 Flight Memory with Date Stamp
  • Bracket not included
Includes
  • Manual
  • Flychart Professional for Windows
  • PC interface cable
  • Attachment clip & elastic Velcro
  • Protective carry bag
  • 2 AA batteries
  • 2 year warranty
Flytec 4020 - $550.00
Flytec 4020
Flytec 4030 Race
Flytec 4030 Race
  • Simplified Button Pressing
  • Approach Altimeter
  • Headwind/tailwind Display
  • Glide ratio display (actual real-time glide and current glide to goal)
  • Optimized speed-to-fly display- McCready's Theory
  • Final Glide Computer
  • Flychart Professional for windows
  • Glide Angle to goal
  • Last Thermal Integrator
  • 126 hour FAI approved barograph
  • Customizable audio
  • Polar recording capability
  • No back-up battery required
  • Two Altimeter
  • Digital & Analogue Variometer
  • Real Time Clock, Flight Timer and Stopwatch
  • Optional Speed Display and Stall Alarm
  • Temperature Display
  • 20 Flight Memory with Date Stamp
  • Bracket not included

Includes

  • FlyChart 4.32 Professional version PC interface cable
  • Ultra compact coiled GPS interface cable
  • Manual
  • Warrantee card
  • Batteries
  • Protective carrying case
Flytec 4030 Race - $775.00

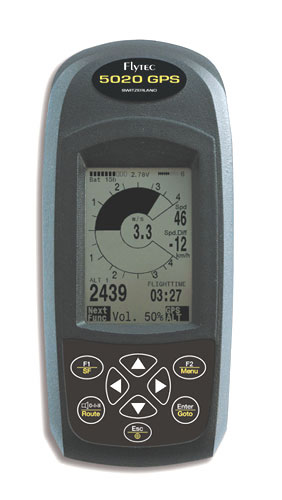

Flytec 5020 GPS
Function Overview
  • Flight instrument with integrated 16 channel GPS receiver w/internal antenna
  • High resolution, high contrast, graphic LCD display (160 x 240 pixels) with automatic or manual contrast adjustment
  • High precision pressure sensor for a very sensitive variometer
  • Ergonomic two color keypad with easy menu structure
  • Two event driven soft keys allow access to important functions performed without navigating through different menus
  • Audio functions are adjustable over a wide range and can be set to automatically increase with speed.
  • Up to 200 waypoints can be defined.
  • Up to 20 routes, each with 30 waypoints can be stored.
  • Automatic pilot notification when a competition cylinder is passed (entry or exit)
  • Automatic indication to the last best lift
  • Automatic indication of wind direction and velocity
  • Automatic start and stop of data logging
  • Variable record interval (1-30 sec) for up to 120 hours of FAI/IGC data logging
  • Scan rate increasing automatically near FAI-sector/turn point with acoustic and visual notification
  • Each track log point records: time, GPS position, GPS altitude, pressure altitude, true airspeed
  • Input for optional external vane type airspeed sensor
  • Compatible with FlyChart which allows easy set-up of functions as well as download/upload of waypoints, routes and flight tracks. A recorded flight conforms completely to IGC-rules (including the digital signature)
  • Compatible with flight evaluation programs (SeeYou - CompeGPS - Maxpunkte - Trackview - GPSVar - IQ-Online) for posting flights to OLC
  • All user settings can be set using the keypad or FlyChart
  • The integrated final glide computer allows a guided flight to all memorized waypoints, showing the expected height over target and height above best glide
  • The display offers different analog and digital information that the pilot can adjust to his/her own preference.
  • Twelve user selectable fields, including:
o Wind speed
o Time of day
o Flight time
o Speed over ground
o Wind component on course line
o Altitude over destination
o Distance to destination
o Bearing
o Track
o Distance to best climb in vicinity
o Ambient temperature (F or C)
o Altimeter 2 (relative)
o Altimeter 3 (accumulated altitude)
o Barometric pressure (HPa/in Hg)
o Glide ratio through air
o Glide ratio over ground
o Glide ratio to waypoint
  • Simulation mode where all features can be tested and simulated
  • Powered by 2 separated battery banks (2 AA Alkaline or NiMH in each bank) providing 2 x 20 hours of use. Automatic battery switch over always allows a complete use of the battery capacity - eliminates half empty batteries!
  • Contiguous display of battery status (bank 1&2)
  • ABS housing, aerodynamic with soft edges
  • Dimension: 6.5" x 2.8" x 1.4"
  • Weight: 10 oz. (with batteries, without bracket)
Flytec 5020 - $899.00

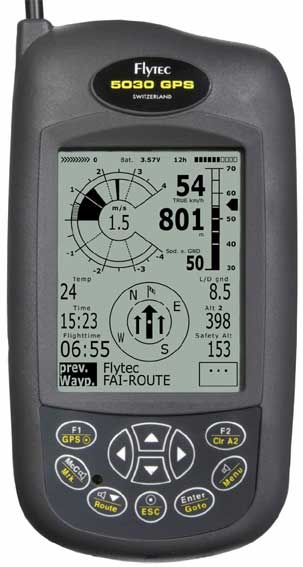

Flytec 5030 GPS
5030 GPS
Function Overview
  • State-of-the-Art Technology
  • Redesigned keypad & housing
  • Integral 16 channel GPS
  • McCready functions
  • Final glide computer
  • Data logger
  • Substantially improved user manual
  • Flight instrument with integrated 16 channel GPS receiver w/internal antenna.
  • Large, high contrast, graphic LCD display (2-3/8" x 3-1/8") resolution of 320 x 240 pixels
  • Ergonomic two tone keypad with easy menu structure
  • Two event driven soft keys are allow access to important functions performed without navigating through different menus
  • Audio functions are adjustable over a wide range and can be set to automatically increase with speed.
  • Up to 200 waypoints can be defined.
  • Up to 20 routes, each with 30 waypoints can be stored
  • Automatic pilot notification, when an FAI cylinder is passed (enter or exit)
  • Automatic indication to the last best lift
  • Automatic start and stop of data logging
  • Up to 96 hours of FAI/IGC data logging memory
  • Scan rate increasing automatically near FAI-sector/turn point with acoustic and visual notification
  • Scan rates can be adjusted from 1 to 60s for off-sector/turnpoint flying
  • Each track log point records: longitude, latitude, altitude (pressure + GPS based), true airspeed, speed over the ground, wind direction, event marker
  • Allows for input of official observer identification which locks the FAI part of the logging until landing.
  • 2 different speed sensors may be used: integrated pitot tube or optional external vane type for paragliding
  • Total energy compensation (TEC)
  • IR-Interface allows data transfer between 5030s (waypoints and routes can be exchanged easily and quickly without a cable)
  • All user settings can be set using the keypad
  • McCready and glide path features
  • The integrated final glide computer allows a guided flight to all memorized waypoints, showing the expected height over target and height above best glide
  • The display offers different analog and digital information that the pilot can adjust to his/her own preferences
  • Twelve user selectable fields, including:
  • Wind speed
  • Wind direction
  • Time of day
  • Flight time
  • Speed over ground
  • Diff. speed between TAS and groundspeed
  • Altitude over destination
  • Distance to destination
  • Bearing
  • Track
  • Direction to best climb in vicinity
  • Ambient temperature
  • Altimeter 2 (relative)
  • Altimeter 3 (cumulated altitude)
  • Barometric pressure (HPa/in Hg)
  • Glide ratio (through air, over ground, to waypoint)
  • Simulation mode where all features can be tested and simulated
  • Display of current voltage and remaining battery time
  • Internal NiMh battery provides more than 25 hours of use with the GPS receiver set to a 1 second update rate (longer update rates will increase usable operating time). Battery is quick charge types without memory effect and can be charged from a AC power outlet or directly from a car cigarette lighter
  • ABS housing, aerodynamic with soft edges
  • Dimension: 7" x 3-3/4" x 1-3/4"
  • Weight: 15 oz. (without hang gliding bracket)
Flytec 5030 GPS HG - $1,379.00
Flytec 5030 GPS PG - $1,299.00

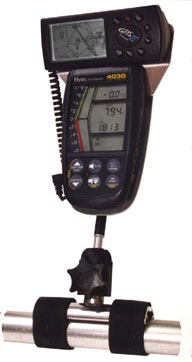

Flytec Vario Brackets & Accesories
◄ HG Bracket - $60.00
Streamlined Insturment Pod
Regular* - $189.00
Carbon Fiber - $249.00
Vario & GPS sold seperately
*Installation charge applies
GPS Adapter Brackets - $29.00

Vario & GPS sold seperately

Airspeed Sensor - $130.00
All prices subject to change without notice.
